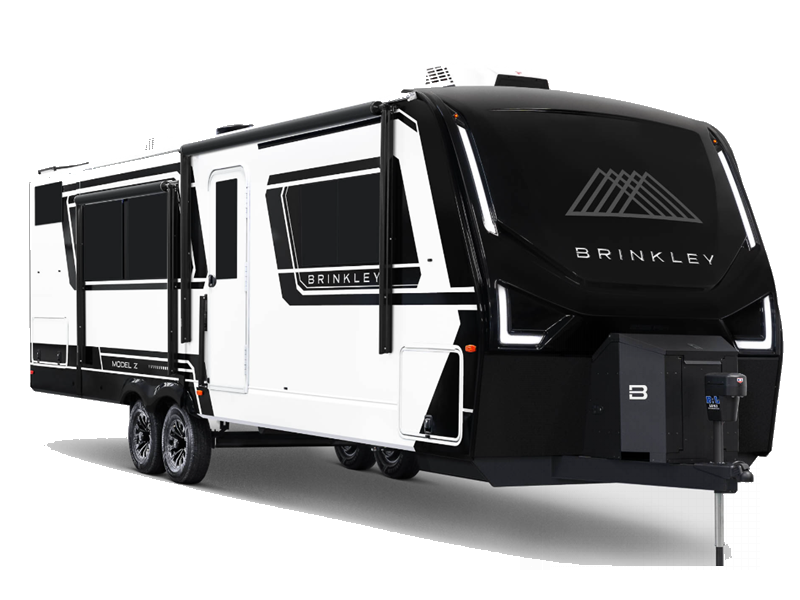

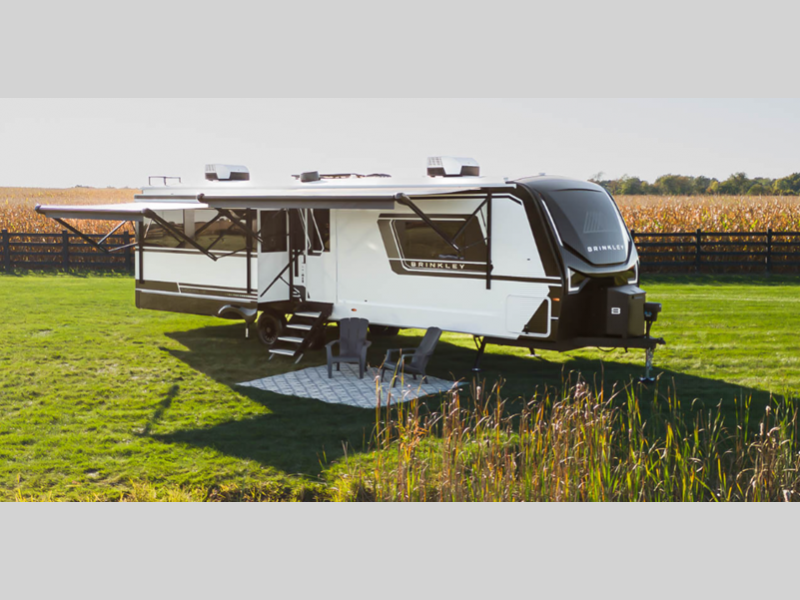

Brinkley's premium travel trailers are the new Model Z Air; come take a look! Like all RVs at Brinkley, you can be sure you're getting a quality-built, innovative travel trailer designed with you in mind!



The drop frame chassis will provide a smooth tow from home to campground, and the one-touch automatic leveling system will have you set up in no time. You will love the sleek styling with automotive-grade exterior graphics, along with the square Euro frameless windows with 6" openings. Inside, there are premium residential cabinet and drawers, solid surface countertops, Brinkley's CraftSense wood trim construction, and many more premium features.



Choosing the Model Z Air travel trailer by Brinkley may just be the easiest decision you'll ever make!

Model Z Air Features:

Standard Features (2025)



Chassis & Suspension

  • Drop Frame Chassis (Brinkley Spec & Certified)

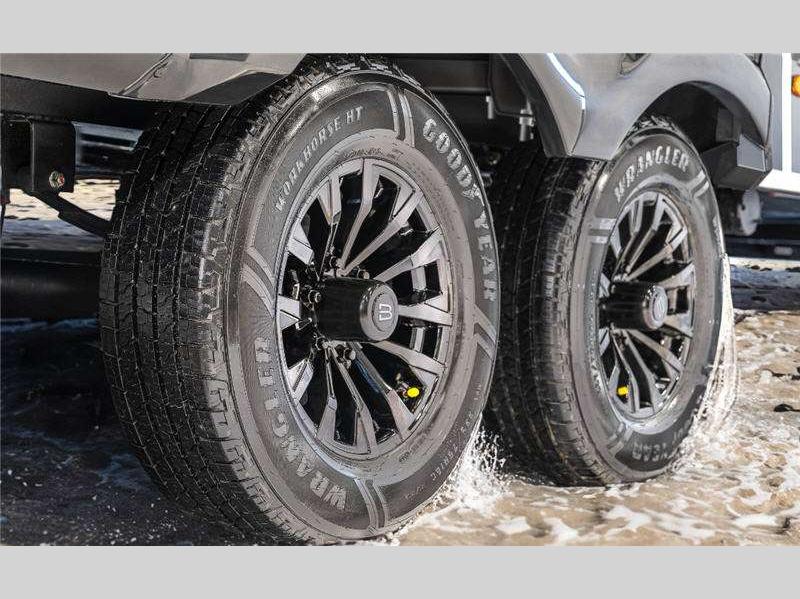

  • 16" Custom Aluminum Luxury Wheels
  • Banded Tire Pressure Monitoring System (TPMS) w/ Wireless Display
  • Automatic One Touch 5-Point Leveling & Stabilization System w/ Hitch Height Memory
  • Heavy Duty 5,600 lbs. Axles w/ 6,000 lbs. Leaf Springs (285 & 295)
  • Heavy Duty 7,000 lbs. Axles w/ 8,000 lbs. Leaf Springs (310)
  • Shock Absorbers
  • High-Performance Road Armor™ Suspension Equalizer System
  • Reinforced Axle Hangers
  • Over 2,200 lbs. of Gross Carrying Capacity (285 & 295)
  • Over 3,500 lbs. of Gross Carrying Capacity (310)
  • Demco EZ Latch Trailer Coupler
  • Upgraded 6' Coiled Breakaway Safety Cable
  • LED Under-Coach Ground Lighting
  • 2" Rear Receiver Hitch w/ 4-Way Connector (300 lbs. Tongue Weight 3,000 lbs. GTW)

Exterior & Storage

  • Square Euro Frameless Windows w/ 6" Openings
  • Dual Pane Square Euro Frameless Windows w/ 6" Openings (Optional)
  • Sleek & Clean Styling w/ Automotive-Grade Exterior Graphics
  • Automotive Front Cap, Lights, & Lenses
  • Exterior Speakers w/ Bluetooth & Campside Controls
  • Dual Electric Awnings w/ LED Lighting
  • Off-Campside LED Flood Light
  • Backup Camera & Wireless Monitor w/ Observation/Security Mode
  • Winegard Air 360+ TV & FM Antenna w/ Wi-Fi Booster
  • Heated & Insulated Pass-Through Storage Compartment w/ Motion Lighting & Power Outlets
  • Over 45 Cubic Feet of Exterior Storage (285)
  • Over 70 Cubic Feet of Exterior Storage (310)
  • Over 100 Cubic Feet of Exterior Storage (295)
  • Front Pass-Through Storage Compartment:
    • Full-Width LED Strip Lighting
    • 4x Power Outlets
    • Antenna/Coax Hookup
    • Forced-Air Heated & Insulated

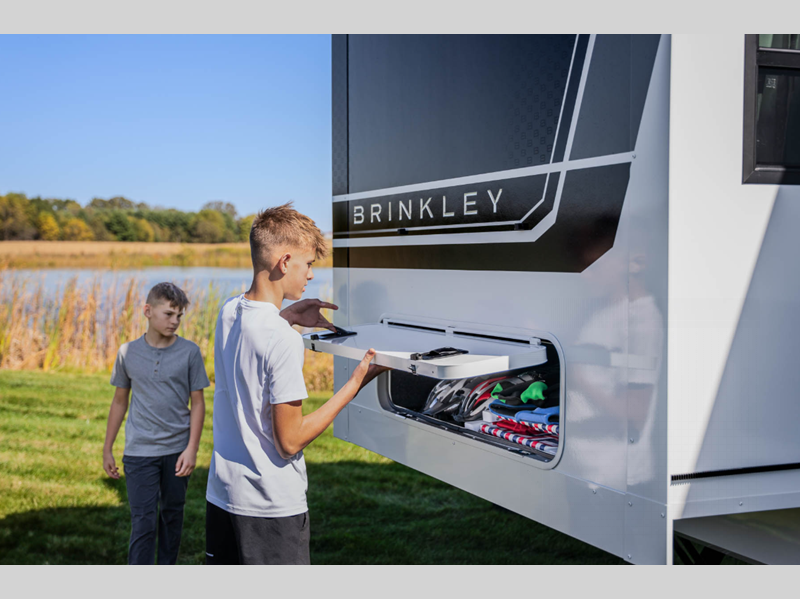

    • Off-Campside 'Saddle Bag' Drop-Down Storage Area
  • Rear Storage Compartment (310):
    • 2x Power Outlets
    • Motion Activated Lighting
    • Forced-Air Heated & Insulated
  • Rear to Campside Pass-Though Drop-Frame Storage Compartment: (295)
    • Flip-Down Cargo Divider
    • 4x Power Outlets
    • Motion Activated Lighting
    • Cargo Pocket w/ Sliding Access Door
    • Adjustable Cargo Bay Tie-Down System w/ 4 L-Tracks (User Installable)
    • Forced-Air Heated & Insulated
  • Tough-Ply Floor & Walls in Storage Compartments
  • Pet & Property Security Campside Tie-Down
  • Slam Latch Baggage Doors
  • High-Capacity Heavy-Duty Secure Step Ladder w/ Weep Holes
  • Custom LP & Gear Box w/ Locked Battery & Tool Storage
  • Rock Guard Front Protective Shields
  • Deluxe Entrance Package:
    • Oversized 30"x76" Entry Door
    • Keyless Entry
    • Integrated Window Shade
    • Child/Pet Defender Screen Protector
    • Slapshot Screen Door Opener
    • Screen Assist – Bounceback Technology
    • Extra-Wide & Deep Solid Entry Steps
    • 54" Telescoping Entry Grab Handle (Extends to Bottom Step)

Solar, Electrical & HVAC

  • 370 Watt Solar Panel (740 Watt Ready)
  • 60 Amp MPPT Solar Controller (Inverter Prep & Lithium Ready)
  • 18k BTU Rear Furrion Chill Cube Air Conditioner (Main)
  • 18k BTU Front Furrion Chill Cube Air Conditioner (Bed & Bath)
  • Brinkley Smart-Command™ Center w/ App Control
  • Thermaflex® No Kink No Tear Heat Ducts
  • Travel & Storage Mode Battery Disconnects
  • Loomed, Labeled, & Color Coded Wiring Harness for Easy Serviceability
  • Wire Conduit for Aftermarket Upgrades (Roof> Interior> Basement)
  • 35k BTU High-Capacity Furnace
  • Detachable 50-amp Power Cord w/ Angled Connector

Plumbing & LP

  • Brass Plumbing Fittings
  • Water Shutoff Valve on ALL Fixtures
  • Upgraded Holding Tanks w/ True Capacities
  • Thermofoil Insulated & Heated Holding Tanks w/ Steel Cross Supports
  • Electric Waste Valves w/ Indicator Light & Manual-Override (Enclosed & Heated)
  • Extended Sewage Hose Storage
  • Clear Sewer Cap w/ Lanyard
  • Brinkley On-Command™ Docking & Utility Center
  • 65' Retractable City Water Hose
  • 2x 90-Degree Brass Elbows for Docking Station Water Hoses
  • EZ Winterization Valve in Utility Center
  • Washer/Dryer Prep (Stackable or Combo) (285)
  • Washer/Dryer Prep (Side-by-Side or Combo) (310)
  • 2x Hot/Cold Exterior Spray Ports (Campside & Off-Campside)
  • Tankless On-Demand Water Heater (144 Gallons Per Hour)
  • 2x 30 lbs. LP/Propane Tanks
  • LP-IQ Propane Gauge
  • Exterior LP Quick Connect

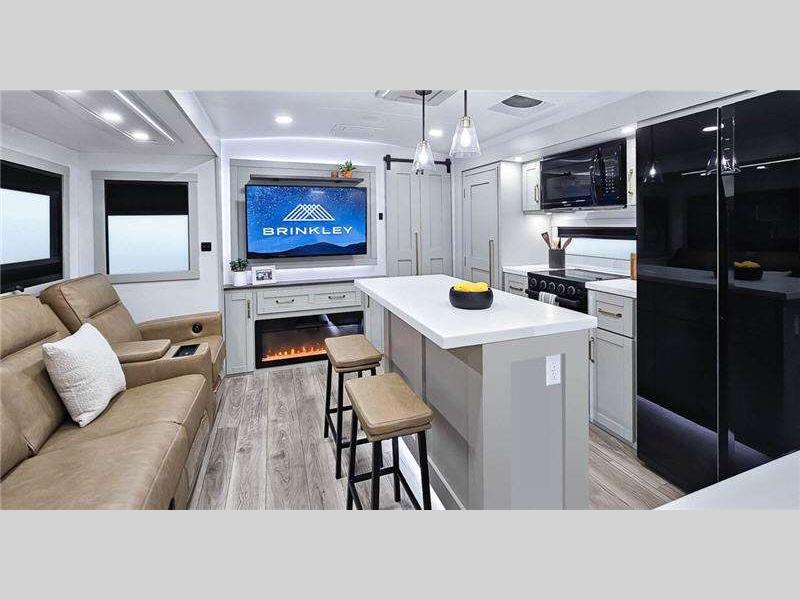

Interior & Living Spaces

  • Brinkley CraftSense™ Wood Trim Construction
  • DUAL Flush Floor Galley & Livingroom Slides
  • 72.5" Slide Out Height
  • Window Intergraded Day Screens & Blackout Shades w/ Reflective Insulation + Full Bug Screens
  • Dimmable Living Room Lights
  • 42" Smart TV & Televator (Powered TV Elevator) (285 & 310)
  • 50" Smart TV w/ Articulating Mount (295)
  • Premium Audio System w/ Bluetooth w/ Physical Controls
  • Entertainment Shelf (Behind TV)

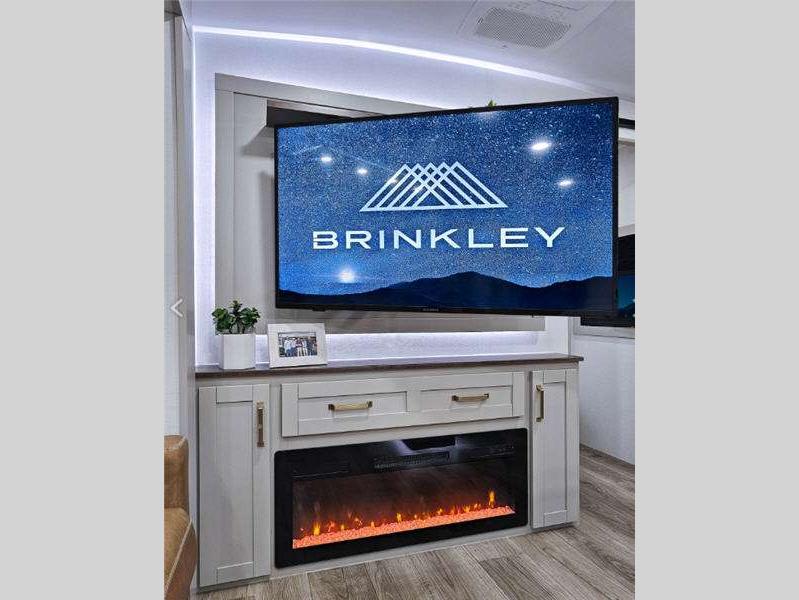

  • Fireplace w/ 5,000 BTU Electric Heat
  • Wall Hugger Theater Seating w/ Heat & Wireless Charging (2x Recliners) (285 & 310)
  • Wall Hugger Theater Seating & Sofa w/ Heat & Wireless Charging (3x Recliners) (295)
  • 72" Trifold Sofa w/ Scotchgard Protection (62"x70" Sleeper) (310)
  • Residential End Tables w/ Storage & Pop-Up Outlets & USB Ports (310)
  • Desk w/ Outlets, Pencil Drawer, & Overhead Storage Cabinets (285)
  • 14 Outlets - 4 w/ USB & USB-C (295)
  • 13 Outlets - 3 w/ USB & USB-C (285)
  • 23 Outlets - 5 w/ USB & USB-C (310)
  • Well-Placed Outlets w/ USB & USB-C High-Speed Charging Stations
  • Soft-Close Cabinet Doors
  • Pet-Friendly Package:
    • Ductless Floors in Main Living Areas
    • Child/Pet Defender Screen Protector
    • 100% Carpet Free
    • Exterior Pet & Property Security Tie-Down

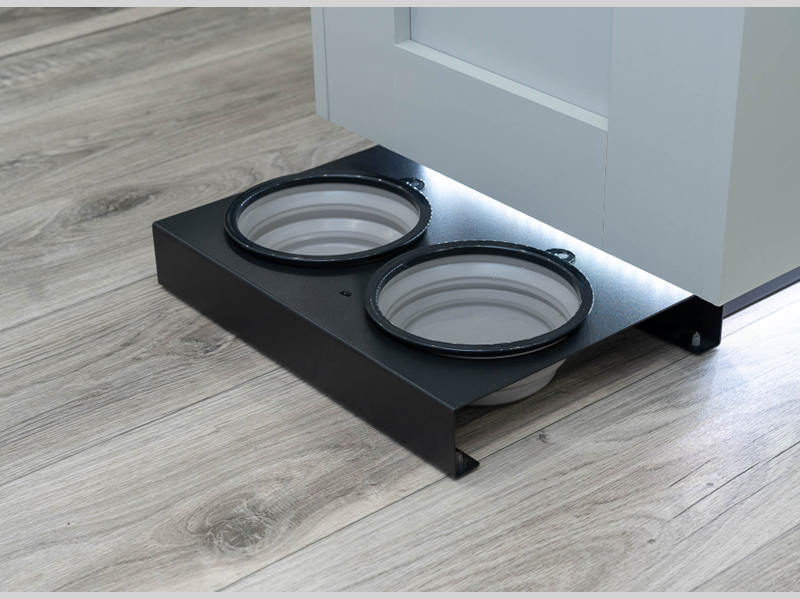

    • Magnetic Pet Feeder w/ Removable Bowls (Snags to Island Base)

Kitchen & Dining

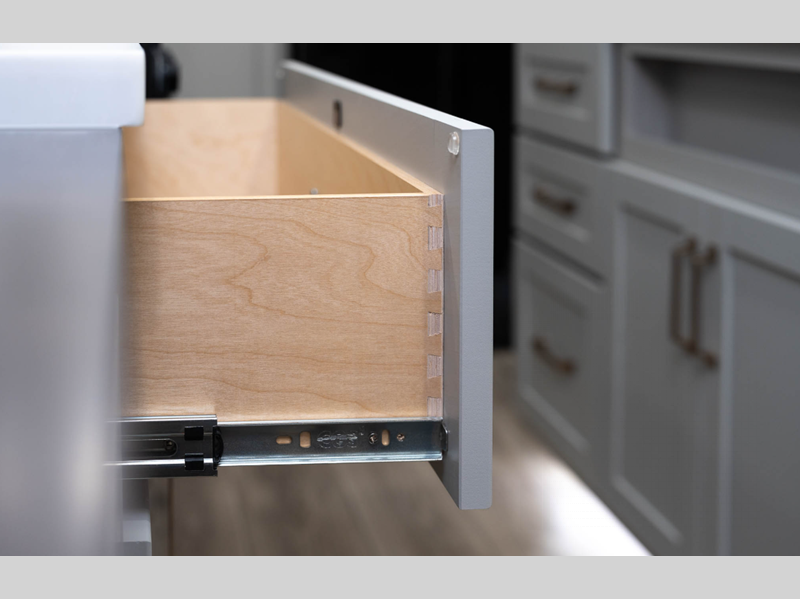

  • Premium Residential Drawers w/ Dovetail Joints
  • Residential Solid Surface Countertops
  • One-Piece Steel Island Base (Super Stable)
  • Flip-Down Island Bar w/ Stools (295)

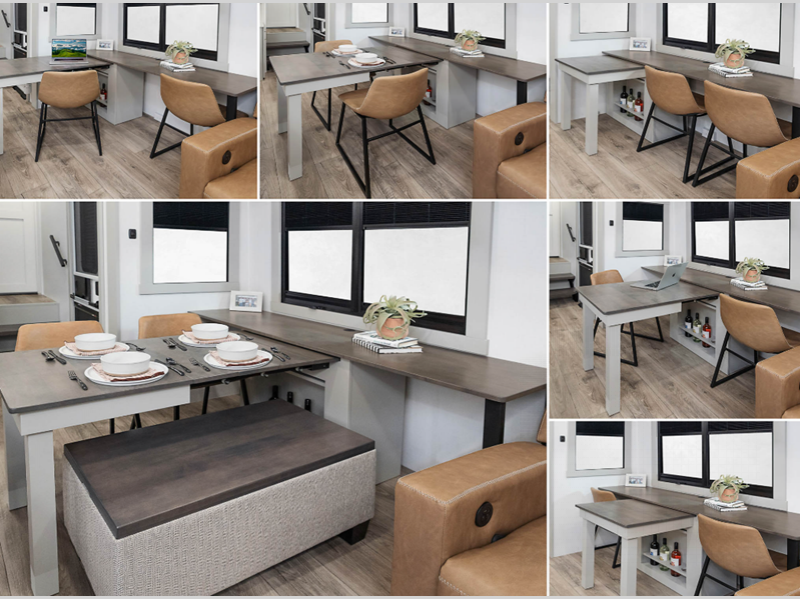

  • Brinkley Z Dinesk™: Sliding Desk/Dining Table w/ Automatic Extending Leaves & Storage Drawer (4 Position) (310)
  • Sleeper Dinette w/ Storage Drawer & Indirect Mood Lighting (285)
  • Pull-Out Trash Bin w/ Utility Storage (285 & 310)
  • Dual Pull-Out Trash Bins (295)
  • Stow ‘N Go Paper Towel Holder
  • Custom Spice Rack Drawer Insert (Removable) (310)
  • Premium Residential Soft Close Cabinets
  • Magnetic Cabinet & Drawer Catches
  • Large Pantry w/ Adjustable Shelves & Appliance Outlet
  • Second Pantry (Next to Fridge) (285)
  • 16 Cubic Feet Energy Efficient 12-Volt Refrigerator
  • Residential 30" Microwave

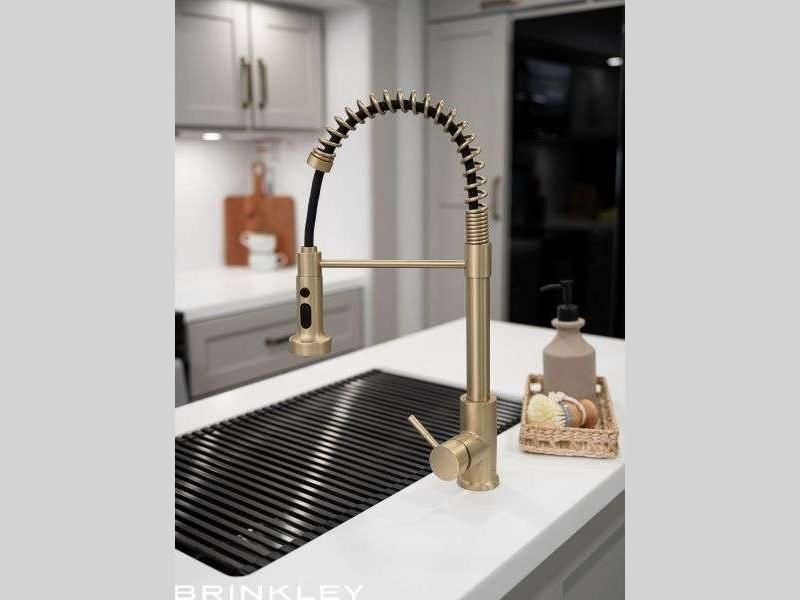

  • Farmhouse Sink & Roller Cover
  • Soffit & Island Base w/ Indirect Mood Light
  • Hutch w/ Solid Surface Countertop (310)
  • Maxxair Fan w/ Rain Sensor

Bathroom

  • Marine Grade Neon LED Shower Lighting
  • Space Saver Bathroom Passage Door(s)

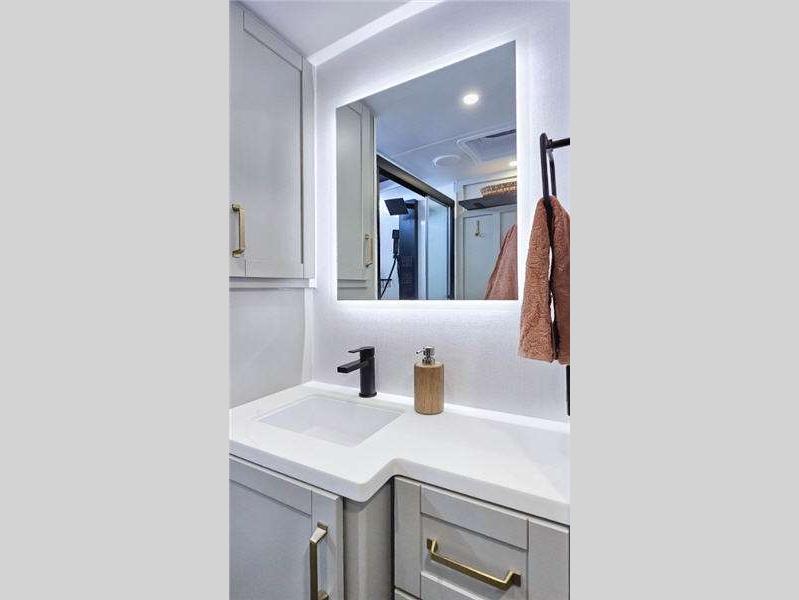

  • Lighted Bathroom Mirror
  • Residential Solid Surface Countertop
  • Glass Sliding Shower Door
  • One-Piece 30"x42" Fiberglass Shower Surround w/ Seat (Max Height)
  • Dual Access Bathroom to Bedroom Pass Through Storage Cabinet
  • 3 Matching Bath Hooks
  • Toilet Paper Holder w/ Magnetic Travel Keeper
  • Overhead Shelf
  • Porcelain Toilet
  • Maxxair Fan w/ Rain Sensor

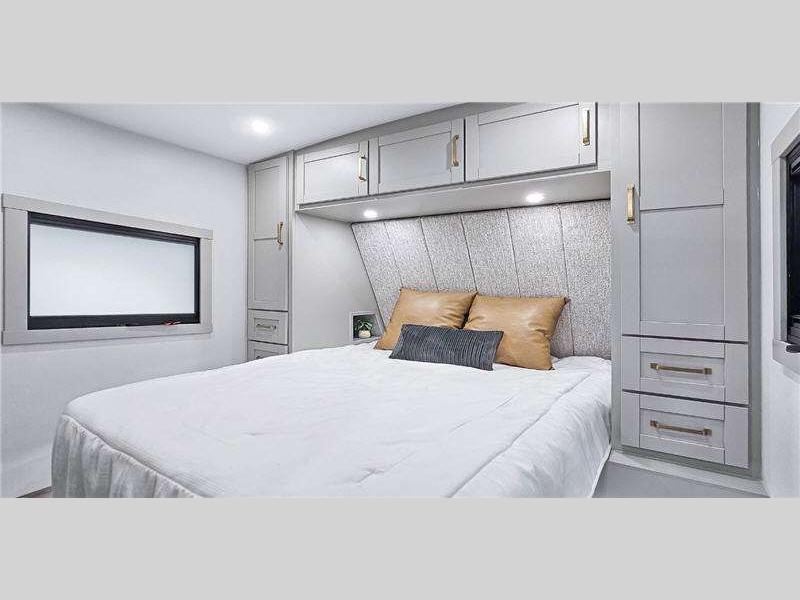

Bedroom

  • Dimmable Bedroom Lights
  • Queen Bed w/ Residential 9" Memory Foam Mattress (60"x80") (285 & 295)
  • Queen Bed w/ Residential 9" Memory Foam Mattress (60"x80") & Nightstands (310)
  • King Bed w/ Residential 9" Memory Foam Mattress (70"x80") (Optional on 310)

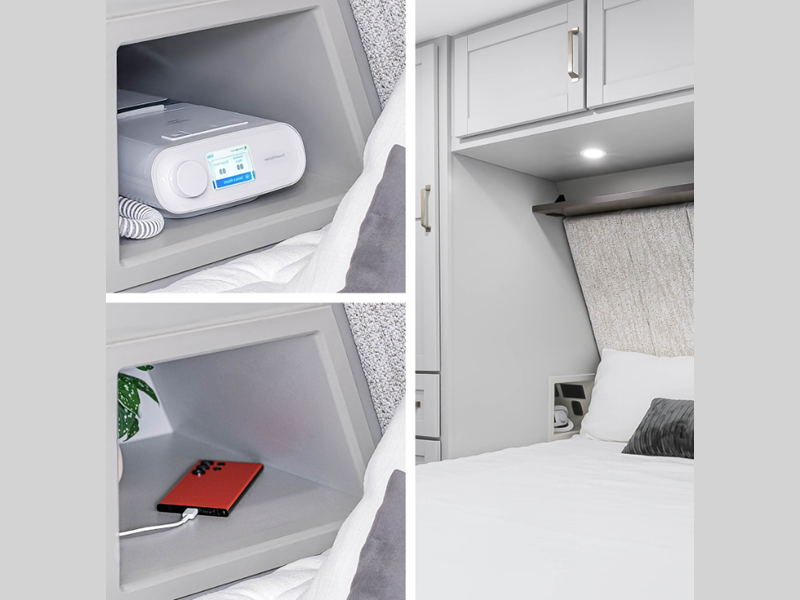

  • Dual Built-in Bedside Storage Cubbies w/ Outlets & USB & USB-C Charging Ports (CPAP Ready) (285 & 295)
  • Dual Bedside Overhead Shelves (CPAP Extensions Available Through Parts Dept.) (310)
  • Matching Comforter & 3 Pillow Package
  • Dual Motion Activated LED Bed Lights
  • Padded Headboard w/ Overhead Shelf (285 & 295)
  • Finished Under-Bed Storage Compartment (295 & 310)
  • 4x Under-Bed Storage Drawers (285)
  • 2x Felt-lined Under-Bed Storage Trays (285)
  • Under-Bed Storage Space w/ Lockable In-Floor Steel Safe (285)
  • Dual Reading Sconce Lights
  • Cordless Vacuum Prep w/ Closet/Wardrobe Outlet
  • Dual Wardrobe Closets w/ Drawers (285 & 295)
  • Triple Wardrobe Closets w/ Drawers (310)
  • Residential Style Dresser (310)
  • Hidden Sliding Dresser Top Storage Compartment (310)
  • 32" Smart TV

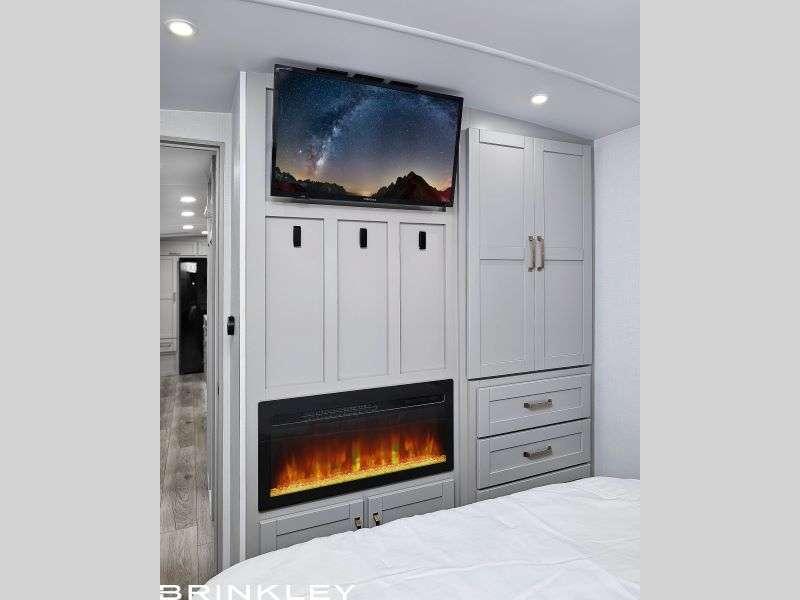

  • Fireplace w/ 5,000 BTU Electric Heat (Bedroom) (285)
  • 3x Folding Wall Hooks

Second Bedroom (Rear Bunkhouse)

  • Residential Interior Door (Private Bedroom) (295)

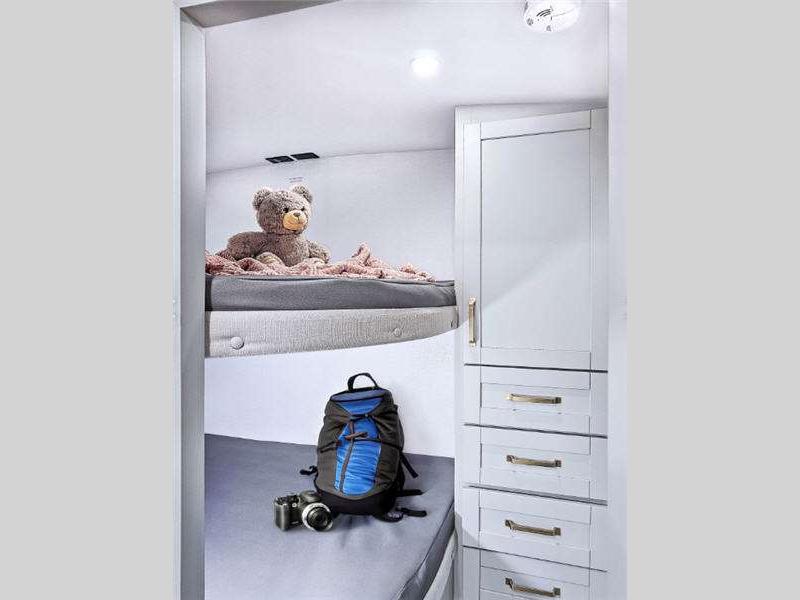

  • Stacked Rear Bunk Beds w/ Double Mattresses (54”x74”) (295)
  • Floor to Ceiling Storage Cabinet w/ Drawers (295)
  • TV Prep (Power, Mounting Backer, & Antenna/Coax) (295)
  • Outlets & USB Charging Station (Upper & Lower Bunk) (295)

Construction

  • Basement Utility Access w/ Removable Sliding Doors & Motion Activated Lights
  • Brinkley Automotive-Grade Sealant Package
  • Automotive-Style Riveted Wheel Skirts & Panels
  • Laminated Exterior Walls w/ High-Gloss Gel Coat Fiberglass & Azdel
  • Reinforced & Walkable Slide Roofs
  • Thermaflex® No Kink No Tear Heat Ducts
  • Loomed, Labeled, & Color Coded Wiring Harness for Easy Serviceability
  • Water Shutoff Valve on ALL Fixtures
  • All-in-One EK Repairable Slideout Seal System
  • Brass Plumbing Fittings
  • Industry Best Insulation Package:
    • R40 Roof, R11 Walls, R40 Floor Insulation
    • Double Insulated Roof, Front Cap, & Main Floor
    • Heated & Enclosed Underbelly (Circulated)
    • Insulated Slideout Floors
  • Every Coach Every Time - Industry Leading Pre-Delivery Tests & Inspection Process:
    • Industry Leading 350+ Point Inspection & Testing Process
    • Off-Road Simulation Tested (Industries Exclusive)
    • Complete Unit Pressure Test (Seals, Gaskets, Slideout, Etc.)

Model 297

  • Sliding Desk/Dining Table w/ Extending Leaves & Storage Drawer (Seats up to 4)
  • 72? Trifold Sofa w/ 62”x70” Sleeper
  • Solid Surface Countertops
  • Brinkley CraftSense™ Wood Trim Construction
  • Premium Cabinets & Drawers w/ Dovetail Joints
  • Kitchen & Living Room/Dining Room Flush Floor Slides
  • 18k Variable Speed Chill Cube Main AC & Bedroom AC
  • Pull-Out Trash Bin w/ Utility Storage
  • Large Pantry w/ Adjustable Shelves & Appliance Outlet
  • 14 Outlets & 4 Outlets w/ USB & USB-C
  • Queen Bed w/ Residential 7? Memory Foam Mattress (60?x80?) & Under-Bed Storage Drawers
  • Under-Bed Locking Safe
  • Built-In Bedside Storage & Outlets w/ USB & USB-C
  • 5,000 BTU Electric Fireplace in Bedroom
  • One-Piece Fiberglass Shower Surround w/ Seat
  • Square Euro Frameless Windows w/ 6? Openings
  • Integrated Window Screens & Insulated Blackout Blinds (No Valances)
  • Brinkley Automotive-Grade Sealant Package
  • Automotive Grade Front Cap, Lights, & Lens
  • Sleek Styling w/ Automotive-Grade Exterior Graphics
  • 2 - Hot/Cold Outdoor Showers (BOTH sides of coach)
  • Tankless On-Demand Water Heater
  • Heated Enclosed Underbelly (Circulated)
  • Custom LP Box w/ Battery Storage
  • One Touch Automatic Leveling System
  • Drop Frame Chassis w/ Over 100 Cubic Feet of Exterior Storage (Accessible Campside) w/ Motion Lighting & Power Outlets
  • Premium Utility Center w/ Retractable 65’ Water Hose
  • Industry First Brass Plumbing Connections
  • Industry First Low Maintenance Roof
  • Heated Tanks w/ Electric Waste Valves w/ Manual-Override
  • Heavy-Duty 7,000 lbs. Axles w/ G-Rated Hankook
  • Tires & 16” Aluminum Custom Wheels
  • Anti-Lock Brakes & Sway Control
  • 370W Solar Panel w/ 60AMP MPPT Controller (Inverter Prep & Lithium Ready)

Factory Options

  • Dual Pane Windows

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Brinkley

Who is Brinkley?



Our ownership team is comprised of five equal partners representing decades of RV experience. We have a strong track record of creating and influencing some of the industry’s most successful RV companies, including many of today’s top-selling fifth wheel and travel trailer brands.



Why did we start Brinkley?



We noticed a distinct shift in the RV industry in recent years and felt a sense of responsibility to our customers to re-ignite cutting-edge innovation and bring back customer-driven product designs that will raise the bar for everyone. More importantly, we saw a gradual decline in quality and a skewed perception of what it means to take care of the customer. We are excited to prove to our customers that there is a better way. We are passionate and committed to building high-quality RVs and servicing them like never before! We encourage you to research us and Brinkley RV. The more you know about us, the more you’ll see that we’re building something different. We are relentless in our pursuit of the ULTIMATE CUSTOMER EXPERIENCE! We will never stop in our quest to be the best and most reputable RV manufacturer in the industry.

Route 66 RV Network logo
